Soldering iron copper tip
1. Diversified soldering irons can quickly solve difficult
soldering processes;
2. The high-precision thermocouple is located at the front end of
the soldering iron tip, so it can sense the slight change of the
temperature at the front end of the soldering iron tip;
300 degrees Celsius can be reached within 3.6 seconds;
4. The card design of the soldering iron head can be quickly
replaced and convenient, and the DCS series series iron tip
integrated design can save 50% of the cost of consumables;
5.DCN series can be directly blown with nitrogen gas-type soldering
iron nozzle: the nitrogen nozzle is integrated with the soldering
iron tip, the pre-heated nitrogen can be blown out from the tip of
the soldering iron tip, and the best welding effect can be achieved
with a small amount of nitrogen gas. This product is very suitable
for lead-free solder;
6. The fast-recovering TM tip can be installed in a full range of
models for future "lead-free soldering" trends;
APOLLO SEIKO's special TM tips don't have to raise the soldering
temperature too much, and can be customized to different process
requirements to improve the quality of the soldering work and meet
different soldering requirements.
7. Wide range of applications: clutch parts welding, micro switch
welding, PCB ceramic parts welding, substrate and parts fixing, GPS
circuit board welding, high brightness LED welding, wire welding,
90 degree angle welding, FPCB parts welding, precision spot welding
, Connector pull welding, wire welding, PIN foot welding, wire
soldering to FPCB, buzzer connector, FPBC soldering, FPCB spot
welding, soft board soldering, TAB soldering.
7. Our company supplies a full range of model iron tips, and
customers are welcome to order products that suit them.

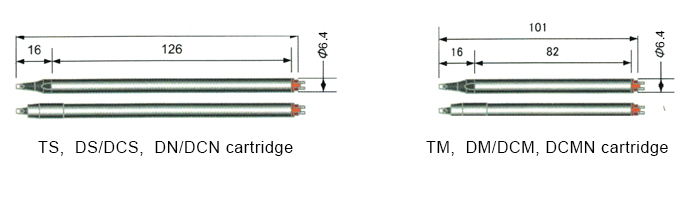

Apollo soldering iron head Apollo Seiko soldering iron head DCS
series (AC48V, total length 101mm);
Apollo soldering iron head Apollo Seiko soldering iron head DCM
series (AC48V, total length 145mm);

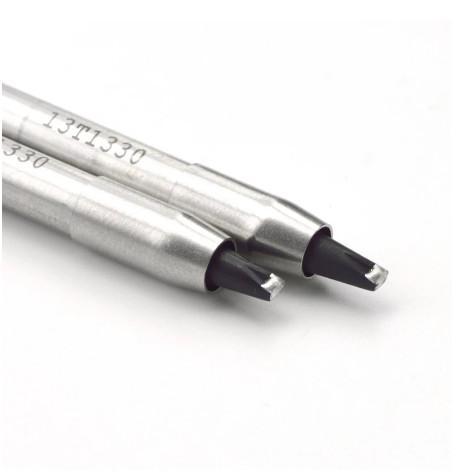

Apollo iron head Apollo Seiko tip DCN series (AC48V, total length
145mm, with nitrogen N2 casing);
Apollo soldering iron head Apollo Seiko tipping ironTM series
(AC110V, total length 145mm);
Apollo soldering iron head Apollo Seiko soldering iron TS series
(AC110V, total length 101mm);
Apollo soldering iron head Apollo Seiko tip TSB series (AC110V,
total length 115mm, high heat capacity),
Apollo soldering iron head Apollo Seiko soldering iron head DCSB
series (AC48V, total length 115mm, high heat capacity),
Apollo tip iron TMB series (AC110V, total length 159mm, high heat
capacity),
Apollo soldering iron head Apollo Seiko soldering iron head DCMB
series (AC48V, total length 159mm, high heat capacity)
Apollo tip advantage:
1. Provide all types of Apollo soldering iron tips;
2. The regular model is available in stock, sufficient stock,
delivery time is 3-15 days;
3. The domestic soldering iron head is directly imported from Japan
Apollo tipping head factory, and the quality is guaranteed.
More product details:
Phone: 13728690324
Apollo tip analysis:
