    XYZ Axis 24VDC 350W Robot PCB AI Soldering Machine

    Ask Lasest Price
    Brand Name : Green
    Certification : CE
    Price : USD 4999-5999/pc
    Payment Terms : T/T, Western Union/paypal
    Supply Ability : 100 sets per month
    Delivery Time : Within 30days after receiving the payment.
    • Product Details
    • Company Profile

    XYZ Axis 24VDC 350W Robot PCB AI Soldering Machine

    Green AI machine soldering machine soldering robot Ai soldering machine


    Product Parameter


    ProjectParameterRemarks
    ModelGR-H-5331R-DGR-H-431R-DCustomized
    RemarksDouble Y axis single head

    One Y axis single head

    Customized

    Working range

    X500mm400mmMovement direction: left and right
    Y1300mm300mmMovement direction: forward and backward
    Y2300mm/Movement direction: forward and backward
    Z100mm100mmMovement direction: up and down
    R360°360°Rotation angle of welding head
    Repeat accuracy±0.02mmEquipment accuracy

    Load

    Workload5kgWorktable load
    Tool load3kgZ bearing load
    Drive methodTiming belt + railOptional screw

    Motor

    Form/PowerClosed loop stepper motor/3AOptional servo motor
    DriveStep driveOptional servo drive
    Power supply240V/50HZ

    Optional low voltage 110V power supply

    Rated powerMax.350W

    Driving power

    Voltage24VDC
    Electric currentMax.3.5A/Axis

    Temperature control type


    150W(built-in OMRON temperature control meter)


    Optional Weller 2000W, JBC and other temperature control

    Heating core

    Weller 151 Heating core(150W)


    Optional Weller 200W, JBC and other soldering station

    Wire supply method0.5-1.2mm(with broken tin)Optional tin shortage alarm
    Smoking pipeUnpowered smokingOptional
    Safety light grid

    Production safety auxiliary device

    Optional
    MES systemConnect production lines to achieve data managementOptional
    Outer size720*640*1040mm640*640*1000mm
    Equipment weight60kg50kg

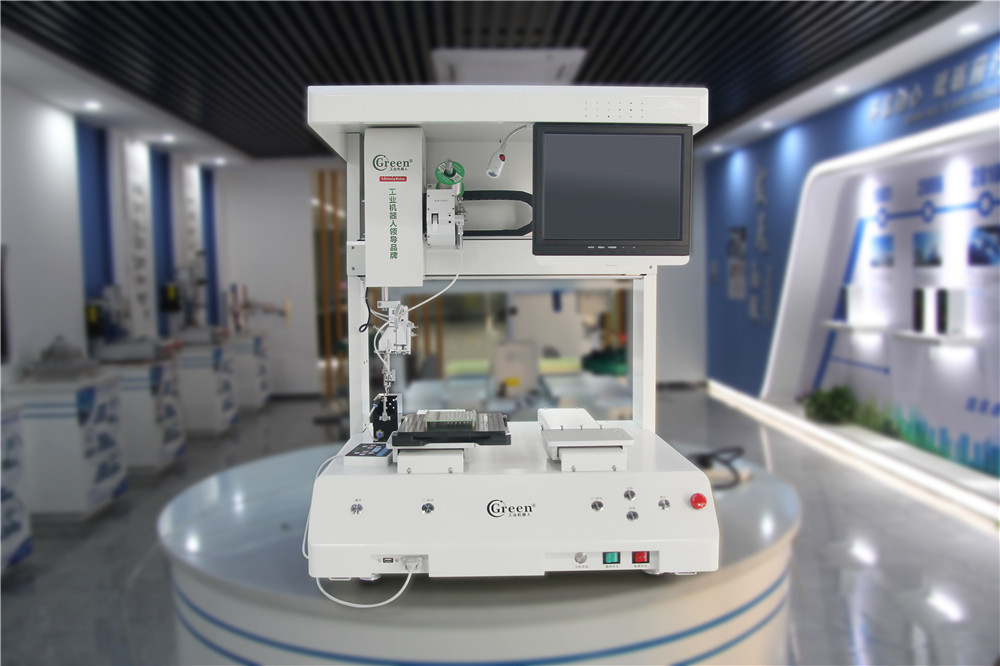

    Product show


    XYZ Axis 24VDC 350W Robot PCB AI Soldering MachineXYZ Axis 24VDC 350W Robot PCB AI Soldering Machine

    XYZ Axis 24VDC 350W Robot PCB AI Soldering Machine
